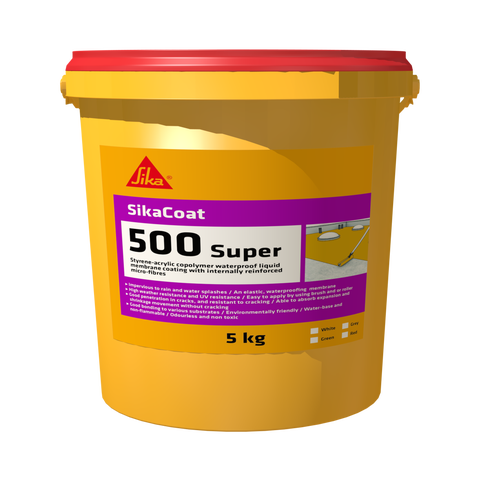

SikaCoat-500 Super
SikaCoat-500 Super is a one component, water-base, liquid elastic waterproofing coating, based on styrene-acrylic copolymers with integral micro-fibre reinforcement. SikaCoat-500 Super coating system is formulated to provide enhanced tensile strength of the coating product and forms a flexible, tough and durable reinforced protective waterproofing membrane layer. It is suitable for use in hot and tropical climates.
- Integral micro-fibre reinforcement able to absorb expansion and shrinkage movement without cracking
- Good penetration in cracks, and resistant to cracking
- High weather resistance and UV resistance
- Environmentally preferred coating: water based, non-toxic and eco-friendly
- Elastic waterproofing membrane
- Easy application by roller, brush or sprayed
- Good bonding to various substrates
- Excellent hiding power
- Crack bridging ability
Usage
Waterproofing:- Flat and sloping fully exposed roof structures
- New construction and refurbishment projects
- External walls
- Roofs with numerous details such as penetrations, drains, roof lights and complex geometry
- Concrete
- Mortar
- Cementitious substrates
- Steel, zinc, aluminium and metal
Advantages
- Integral micro-fibre reinforcement able to absorb expansion and shrinkage movement without cracking
- Good penetration in cracks, and resistant to cracking
- High weather resistance and UV resistance
- Environmentally preferred coating: water based, non-toxic and eco-friendly
- Elastic waterproofing membrane
- Easy application by roller, brush or sprayed
- Good bonding to various substrates
- Excellent hiding power
- Crack bridging ability
Packaging
- 5 kg pail
- 20 kg pail
Colour
- White
- Grey
Product Details
CERTIFICATES AND TEST REPORTS
Singapore Green Label 032-118-3902 "Environmentally Preferred Coating" in accordance to SEC Green Label Category 32: Paint and Surface Coatings.
Composition
Watery emulsion using styrene-acrylic copolymers with internal mirco-fibre reinforcement
Shelf Life
12 months from date of production
Storage Conditions
Store properly in original, unopened, undamaged sealed packaging in dry condition at temperature between +5 °C and +30 °C. Protect from direct sunlight.
Density
(1.25 ± 0.03) kg/l
Volatile organic compound (VOC) content
< 50 g/l
Viscosity
~130 KU
Solid content by volume
(52 ± 2) %
System Structure
For wall
| Layer | Consumption | |
| Primer | SikaCoat-500 Super diluted with 15–20 % clean water | 0.3 kg/m² (undiluted) |
| First coat | SikaCoat-500 Super | 0.3 kg/m² |
| Second coat | SikaCoat-500 Super | 0.3 kg/m² |
For roof
| Layer | Consumption | |
| Primer | SikaCoat-500 Super diluted with 15–20 % clean water | 0.3 kg/m² (undiluted) |
| First coat | SikaCoat-500 Super | 0.65 kg/m² |
| Second coat | SikaCoat-500 Super | 0.65 kg/m² |
The consumption above are approximates and does not include wastages. For porous substrates, the consumption may be higher.
Tensile Strength
| ~2.2 N/mm² | (ASTM D412) |
Application
Ambient Air Temperature
+5 °C min. / +35 °C max.
Substrate Temperature
+5 °C min. / +35 °C max.
Substrate Moisture Content
≤ 4 % pbw
Test method: Sika®-Tramex meter, CM - measurement or oven-dry-method.
No rising moisture according to ASTM D4263 (Polyethylene-sheet)
Waiting Time / Overcoating
| Minimum | 2–3 hours at +30 °C |
| Maximum | ~2 days at +30 °C |
Applied Product Ready for Use
~72 hours at +30 °C
SUBSTRATE PREPARATION
Substrates must be free of standing water (no puddles) clean and free of all contaminants such as dirt, oil, grease, coatings, laitance, surface treatments and loose friable material.
All existing coating / membrane, dust, loose and friable material must be completely removed from all surfaces before application of SikaCoat-500 Super, and associated system products, by industrial vacuuming equipment.
The substrate must be sound and of sufficient strength. Weak concrete must be removed and surface defects such as blowholes and voids must be fully exposed.
To confirm adequate surface preparation and product adhesion, carry out a trial before full application together with adhesion tests.
MIXING
Mix SikaCoat-500 Super manually or use a low speed mixer until it is completely homogeneous prior to application.
APPLICATION
Dilute SikaCoat-500 Super with 15–20 % of clean water. Stir gently until the mix is homogenous and uniform colour is achieved. Using a short hair wool roller, brush or by airless spray, apply a layer of the diluted SikaCoat-500 Super onto the substrate, observing that it penetrates well in all the cracks.
After the primer has dried (> 3 hours at +30 °C), apply successive layers of SikaCoat-500 Super to the desired film thickness. Ensure the previous layer is completely dry before applying the next layer.
CLEANING OF TOOLS
Clean all tools and application equipment with water immediately after use. Hardened material can only be removed mechanically.
FAQ
Cool roof coatings generally require minimal maintenance but benefit from periodic inspection and cleaning. Check for dirt, debris and biological growth that can reduce solar reflectivity and roof coating performance.
SikaCoat-500 Super & SikaCoat-555 features high weather and UV resistance, reducing the need for frequent recoating. Inspect the reflective coating roof annually for signs of wear, cracking or peeling, and clean as needed. If damage occurs, repair promptly. Recoating may be required after several years depending on exposure conditions and roof traffic.
Before applying a cool roof coating, inspect the roof surface for damage, loose material, cracks and contaminants. The substrate must be clean, dry and free from oil, grease and dust. For Sikalastic®-590, ensure the roof has adequate slope to avoid water ponding.
For SikaCoat-500 Super & SikaCoat-555, check for existing cracks requiring repair before applying reflective coating roof systems. Repair damaged areas, remove loose material and prime if required. Sika Malaysia recommends assessing the roof's structural condition and confirming compatibility before cool coat application. Proper preparation ensures lasting roof waterproofing performance.
Roof reflectivity reduces heat inside a building by reflecting solar radiation away from the roof surface rather than absorbing it as heat. Sika Malaysia cool roof coatings reflect over 65 % of the sun's rays, compared to conventional roofs which repel less than 15 %.
Products such as SikaCoat-333, SikaCoat-500 Super and SikaCoat-555 have high solar reflectance and reduce heat absorption, helping lower building temperatures and improve energy efficiency. This reduces heat transferred into the building interior, lessening the load on air conditioning. The result is improved thermal comfort and lower energy consumption, demonstrating the value of heat reflective paint for roof.
Yes, cool roof systems are suitable for commercial and industrial buildings. Sika Malaysia provides roof solutions for flat and sloping fully exposed roof structures in new construction and roof restoration projects. The energy-saving benefits are valuable for large commercial buildings with significant cooling demands.
Sikalastic®-590 suits roofs with complex geometry and limited accessibility, common in industrial settings, providing reflective coating roof performance to reduce cooling costs. SikaCoat-500 Super & SikaCoat-555 offer tough, durable reinforced protective roof coating suitable for exposed roofs. These cool roof systems help reduce operational costs and improve building sustainability.
Yes, cool roof coating systems are well suited to roof restoration projects. Sikalastic®-590 is designed for roof waterproofing solutions in new construction and refurbishment, extending the life cycle of failing roofs. It suits roofs with complex geometry where accessibility is limited.
SikaCoat-500 Super & SikaCoat-555 are ideal for roof restoration projects on concrete roofs, metal and fibre cement board, providing roof waterproofing and solar reflectivity. Using a cool roof coating during refurbishment adds energy efficiency alongside waterproofing. Sika Malaysia recommends assessing existing roof condition before applying reflective coating roof systems.
Applying a cool roof coating to an existing roof involves surface preparation, priming if required, and application by brush, roller or spray. For Sikalastic®-590, clean the roof surface and apply the roof coating to achieve the recommended dry film thickness.
SikaCoat-333 is self-priming, simplifying cool coat sika application on concrete, metal and other substrates. SikaCoat-500 Super & SikaCoat-555 can be applied directly by brush, roller or spray. Ensure the roof is dry and free from contaminants before applying heat reflective paint for roof. Apply evenly and allow adequate curing between coats, following Sika Malaysia application instructions.
Sika Malaysia offers cool roof coating products suitable for metal roofs. SikaCoat-333 is a styrene-acrylic roof coating ideal for concrete roofs, metal roofs and exterior surfaces, providing high solar reflectivity in white.
SikaCoat-500 Super & SikaCoat-555 are another suitable cool coat sika option, based on styrene-acrylic copolymers with integral micro-fibre reinforcement, suitable for roof restoration projects on metal, and concrete. SikaCoat-333 also bonds well to metal and provides reflective coating roof performance. Proper surface preparation ensures adhesion to metal roof surfaces.
Choosing the right cool roof coating depends on your roof substrate, building type and performance requirements. For concrete roofs, Sikalastic®-590 is a one-component polyurethane-acrylic dispersion with good crack-bridging capacity and reflective coating roof properties.
SikaCoat-333 suits various substrates including concrete, metal and brickwork, providing heat reflective paint for roof performance. For enhanced tensile strength, SikaCoat-500 Super & SikaCoat-555 features integral micro-fibre reinforcement. Consider roof slope, exposure and whether the roof coating is for new construction or roof restoration. Sika Malaysia provides technical support for correct cool roof system selection.
A cool roof system offers several benefits for buildings in Malaysia's tropical climate. It reduces mechanical air conditioning needs, lowering energy costs and improving efficiency. The reflective coating roof surface minimises heat gain inside the building, enhancing occupant comfort.
Sika Malaysia cool roof coatings, including SikaCoat-333, SikaCoat-500 Super and SikaCoat-555, help mitigate the urban heat island effect. They extend roof lifespan by reducing thermal stress. The roof waterproofing properties also protect against water ingress and weather damage. These roof solutions ensure durability and support cool roof technology adoption for sustainable buildings.
