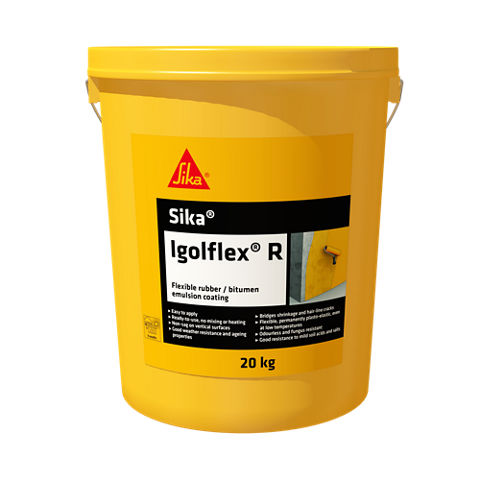

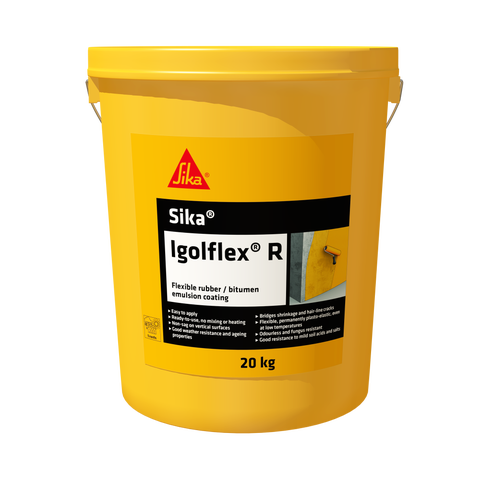

Sika® Igolflex® R

Sika® Igolflex® R

Flexible rubber / bitumen emulsion coating

Sika® Igolflex® R is a solvent free, flexible thick film coating based on rubber bitumen emulsion with a pasty consistency. When applied to concrete surfaces, Sika® Igolflex® R provides protection against the penetration of salty ground water and mild soil acids.

  • Suitable for use on both dry and damp surfaces
  • Easy to apply
  • Ready-to-use, no mixing or heating
  • Non-sag on vertical surfaces
  • Good weather resistance and ageing properties
  • Bridges shrinkage and hair-line cracks
  • Flexible, permanently plasto-elastic, even at low temperatures
  • Odourless and fungus resistant
  • Good resistance to mild soil acids and salts
Enquire about this product
Product Data Sheet
Show all documents

Usage

Used as a flexible external protective coating and vapour barrier for:
  • Retaining walls
  • Basements
  • Settlement tanks


Advantages

  • Suitable for use on both dry and damp surfaces
  • Easy to apply
  • Ready-to-use, no mixing or heating
  • Non-sag on vertical surfaces
  • Good weather resistance and ageing properties
  • Bridges shrinkage and hair-line cracks
  • Flexible, permanently plasto-elastic, even at low temperatures
  • Odourless and fungus resistant
  • Good resistance to mild soil acids and salts

Packaging

  • 20 kg pail
  • 200 kg drum

Product Details

Product Information

Composition

Bitumen

Shelf Life

9 months from the date of production

Storage Conditions

Store properly in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +30 °C. Keep away from direct sunlight and frost.

Density

0.96–1.20 kg/l (at +30 °C, Density cup 100 cc.)

ASTM D1475

Solid content by weight

≥ 55 %

ASTM D2939
System information

System Structure

Priming coat

Sika® Igolflex® R 1:1 with clean water

~0.35 kg/m² (including water)

1st coat

Sika® Igolflex® R undiluted

~0.70 kg/m²

Reinforcement (Optional)

Fiberglass matt

75 g/m²

2nd coat

Sika® Igolflex® R undiluted

~0.70 kg/m²

3rd coat

Sika® Igolflex® R undiluted

~0.70 kg/m²
Technical Information

Temperature Resistance

The cured film will not flow or sag under direct sunlight.

Application

Application Information

Ambient Air Temperature

+8 °C min. / +35 °C max.

Substrate Temperature

+8 °C min. / +35 °C max.

Drying Time

Tack free

½–1 hour

Overcoating

6–12 hours

Final cure

2–4 days (depending on climate and coat thickness)
Application steps

SUBSTRATE PREPARATION

  • New concrete, screed or render should have a brushed or wood float finish, and should be free from contamination by any material that could impair adhesion. All surface defects should be repaired by approved methods. Protrusions greater than 3 mm should be removed.
  • Existing concrete, screed or render should be well prepared to provide a dense, defect free substrate.
  • Concrete surfaces should be mat-moist and free from standing water.
  • Brickwork, blockwork and masonry should be flush pointed.
  • All intersections of horizontal and vertical surfaces should be profiled with a mortar fillet of 25 x 25 mm.

MIXING

Mechanical mixing is not required. Product should be manually stirred with a plastic spatula until a smooth consistency is obtained.

CLEANING OF TOOLS

Clean all tools and application equipment with water immediately after use. Hardened or cured material can only be removed mechanically.
