Sikafloor® Traffic-2219 AP
Sikafloor® Traffic-2219 AP is a dynamic crack-bridging, waterproofing and slip resistant car park system based on pure polyurea waterproofing membrane and polyaspartic topcoat. It provides fast cure, hard wearing, high elastic, seamless finish, and color stable properties.
Sikafloor® Traffic-2219 AP is designed for exposed and intermediate car parking decks.The surface produces a slip resistant, low maintenance coloured semi-gloss finish.
- Dynamic crack bridge even at -20 °C
- High wear resistance
- Skid/slip resistant
- Rapid spray applied application
- Very fast set
- UV and color stable
- Good chemical and mechanical resistance
- Waterproof
- Low dirt retention, low maintenance
System Structure
Usage
Sikafloor® Traffic-2219 AP may only be used by experienced professionals.- For use on exposed, intermediate decks and sheltered car park top decks where maximum crack bridging and wear resistance are required.
- As waterproofing coating for floors, walkwawys.
Advantages
- Dynamic crack bridge even at -20 °C
- High wear resistance
- Skid/slip resistant
- Rapid spray applied application
- Very fast set
- UV and color stable
- Good chemical and mechanical resistance
- Waterproof
- Low dirt retention, low maintenance
Colour
Sikafloor® TC 681 is available in following colours: approx. RAL 7032, 7035, 7040.
Appearance
Slip resistant, glossy finish
System Details
ENVIRONMENTAL INFORMATION
Conformity with LEED v2009 IEQc 4.2: Low Emitting Materials - Paints and Coatings
CERTIFICATES AND TEST REPORTS
- kiwa report P11935-1 with adapted local primer.
- elletipi s.r.l report

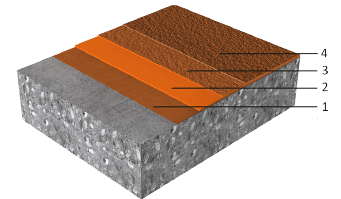

System Structure
Sikafloor® Traffic-2219 AP
| Layer | Product |
| 1. Primer + Sand broadcast | Sikafloor®-161HC + Quartz sand 0.3~0.8mm |
| Optonal: Scratch coat | Sikafloor®-161HC filled with Quartz sand |
| 2. Waterproofing membrane | Sikalastic® M 689 |
| 3. Topcoat 1st | Sikafloor® TC 681 + Quartz sand 0.3~0.8mm |
| 4. Topcoat 2nd | Sikafloor® TC 681 |
Nominal Thickness
Approx. 3.0 ~ 5.0 mm
Abrasion Resistance
| Average: 425 mg with H22, 1000g, 1000 cycles | (ISO 5470-1) |
Tensile Adhesion Strength
| ≥ 1.5 N/mm² | (EN 1542) |
Permeability to Carbon Dioxide
| Sd ≥ 50 m | (EN1062-6) |
Skid / Slip Resistance
| Dry at 20 °C | 75 |
| Wet at 20 °C | 56 |
Resistance to Wearing
| AR: ~0 μm | (EN 13892-4) |
Gloss Level
Gloss
Application
Layer Thickness
Approx. 3.0 mm ~ 5.0 mm*
* The system consumption and system layer thickness vary according to country specific guidance and standards.
Ambient Air Temperature
+8 °C min. / +30 °C max. For spray applied membrane refer to the individual Product Data Sheet.
Relative Air Humidity
Max. 80 %
Dew Point
Beware of condensation!
The temperature of the contact surfaces must be at least 3 °C above the ambient dew point temperature to reduce the risk of condensation
Substrate Temperature
+8 °C min. / +30 °C max.
Substrate Moisture Content
For primer Sikafloor-161 HC:
≤ 4 % pbw moisture content.
Test method: Sika®-Tramex meter, CM-measurement on Oven-dry method
No rising moisture according to ASTM (Polyethylene-sheet).
Substrates
Have an adequate pull-off strength min 1.5 N/mm², no rising moisture.
Pot Life
Refer to related Product Data Sheets
Applied Product Ready for Use
After Sikafloor® TC-681 Application
| Ready for pedestrian traffic at 23 °C | 4 hours |
| Ready for car traffic at 23 °C | 7 hours |
| Fully cured at 23 °C | 7 days |
Waiting Time
Overcoating time between primer and Sikalastic® M 689 refer to selected primer PDS.
Below each layer after application the interval time shows:
| Minimum waiting time, hours
| Maximum waiting time, hours
| |||||||||||
| Sikalastic® M 689 | Immediately |
| ||||||||||
| Sikafloor® TC 681 |
|
|
Note: Times are approximate and will be affected by changing ambient conditions.
Consumption
| Layer | Product | Consumption |
| 1. Primer + Sand Broadcast | Sikafloor®-161HC Quartz sand 0.3 ~ 0.8 mm | 0.3 ~0.5 kg/m² 0.8 ~ 1.0 kg/m² |
| Optional up to 1mm roughness | Sikafloor®-161HC 1:0.5 filled with Quartz sand 0.3 ~ 0.8 mm | 0.6 ~1.0 kg/m²* 2.0 ~ 3.0 kg/m² |
| 2. Waterproofing membrane | Sikalastic® M 689 | 2.3 ~ 3.4 kg/m² |
| 3. Topcoat 1st + Sand Broadcast | Sikafloor® TC 681 Quartz sand 0.3 ~ 0.8 mm | 0.5 ~ 0.8 kg/m² In excess |
| 4. Topcoat 2nd | Sikafloor® TC 681 | 0.5 ~ 0.8 kg/m² |
* This consumption including filler
SUBSTRATE PREPARATION
Sika Method Statement: Evaluation and preparation of surfaces for flooring systems
MIXING
Sika Method Statement: Mixing & Application of flooring systems
Sika Method Statement Sikalastic®-8800 & M689
APPLICATION
Sika Method Statement: Mixing & Application of flooring systems
Sika Method Statement Sikalastic®-8800 & M689
CLEANING OF TOOLS
Refer to Sika Method Statement: Sikafloor® -Cleaning Regime
