Product Data Sheet
Show all documents

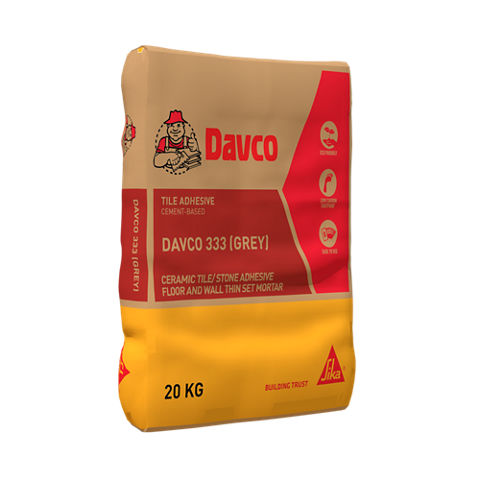

Davco® 333

Ceramic tile / stone adhesives - floor and wall thin-set mortar

Davco® 333 is an economical thin bed cement adhesive ideal for fixing ceramic tiles, natural stones and most monocottura to interior and exterior walls and floors.

  • Excellent water resistance (when used with Davco TT1 Latex Additive)
  • Easy Installation
  • User friendly
Product Data Sheet
Show all documents

Usage

  • Used to lay tiles or natural stones onto concrete render, blockwork and rendered brick work surfaces.
  • Used on walls and floors in both interior and exterior applications.


Advantages

  • Excellent water resistance (when used with Davco TT1 Latex Additive)
  • Easy Installation
  • User friendly

Packaging

  • 20 kg bag
  • 25 kg bag

Colour

  • Grey powder
  • White powder

Product Details

Product Information

Shelf life

6 months from date of production

Storage conditions

Store properly in dry conditions, in undamaged and unopened, original sealed packaging. Keep away from direct sunlight, rain and moisture.
Technical Information

Tensile adhesion strength

Standard condition

≥ 0.5 N/mm²

Application

Application Information

Mixing ratio

  • 4.6–5.0 L of water per 20 kg bag
  • 5.75–6.25 L of water per 25 kg bag

Open Time

~20 minutes at 25 °C

Adjustability time

~15 minutes at 25 °C

Curing time

~24 hours at 25 °C
Consumption

Consumption

This depends on the level, profile and surface roughness of the substrate, the size of the tiles and the technique of placing (simple placing or "back"-buttering).
As a guide, in kilogram of powder per m² on flat surfaces:

Tiles size

Coverage

Trowel size

Mosaics and small tiles

~2.0–3.0 kg/m²

3 mm x 3 mm notched trowel

Normal size tiles (20 cm x 20 cm)

~5.0–5.5 kg/m²

6 mm x 6 mm notched trowel

Large size tiles up to 3 600 cm² (internal floors) and 2 100 cm² (external floors)

~10.0–11.0 kg/m²

12 mm x 12 mm notched trowel

The consumption above may only serve as a guide. It is highly recommended to carry-out trials on site to determine the actual coverage.
Application steps

MIXING

Pour clean water into a mixing container. Then, slowly add Davco® 333. Mix continuously in circular motion using a low-speed mechanical mixer until a lump-free, creamy consistency and uniform paste is achieved.

Allow the mix to stand for 5 minutes and re-mix prior to use.

APPLICATION

Davco® 333 is spread onto the substrate using a proper and suitable notched trowel. The choice of trowel should be governed by the size of the tiles, depth of knobs, grooves or ridges on the back of the tiles and the evenness of the substrate.

Use the flat side of the notched trowel to spread the mix onto the receiving surface at approximately 1 m². Then, use the notched side of the trowel to apply the required amount of the mix in one direction.

Press the tile in a perpendicular motion and tapped into position to ensure positive contact with the adhesive and adjust within 15 minutes.

For tile with grooves or ridges, it is necessary to skim a layer of adhesive / butter coat the back of the tiles. This is to ensure good bonding and adequate coverage between the adhesive and tile.

Ensure that the adhesive is wet when the tiles are laid. Do not allow the adhesive to skin-over prior to tilling. Should skinning occur, break the skin by re-trowelling the adhesive in the opposite direction.

Do not spread more than 1 m² at any one time. Fix tiles within 15 minutes of applying the adhesive and check the contact by occasionally lifting the tiles.

Ensure there are no voids under the tiles and leave adequate wall & floor joints.

For external tiling, protect from direct sun and rain by means of a shelter. It is the user’s responsibility to determine the condition and suitability of all surfaces prior to application.

Grouting

Tile joint grouting should preferably be carried out at least 24 hours after completion of tiling or until the adhesive has set and dry sufficiently.

Setting may be delayed on dense or impervious surface.

CLEANING OF EQUIPMENT

Clean all tools and application equipments with clean water immediately after use. Hardened or cured material can only be removed mechanically.

Documents

FAQ

What is a C1 tile adhesive?

A C1 tile adhesive is cementitious and has normal setting characteristics. To be categorize as C1, cementitious tile adhesives must meet the tensile adhesion requirement of ≥ 0.5 N/mm² after normal curing, water immersion, heat aging and freeze-thaw cycles (EN 12004).

C1 tile adhesives are normally used as adhesives for ceramic tiles and small format tiles (up to 300 mm × 300 mm) in general conditions.

Sika's product:

What are the differences between porcelain and ceramic tiles? Does this affect the type of tile adhesive I should use?

Porcelain tiles are more durable (denser and harder), has lower water absorption properties (≤ 0.5 %), and are normally used in areas with high volume of foot traffic (eg. commercial properties, hotels, offices, and retail outlets). Hence, porcelain tiles require a tile adhesive with improved bonding properties (C2).

Sika's product:

Ceramic tiles are easier to use (less brittle, easy to cut and shape), have higher water absorption properties (˃ 0.5 %), and are normally used for walls and floors in housing projects, interior walls of commercial buildings and low volume foot traffic areas. Therefore, ceramic tiles require a tile adhesive with normal bonding properties (C1).

Sika's product:
