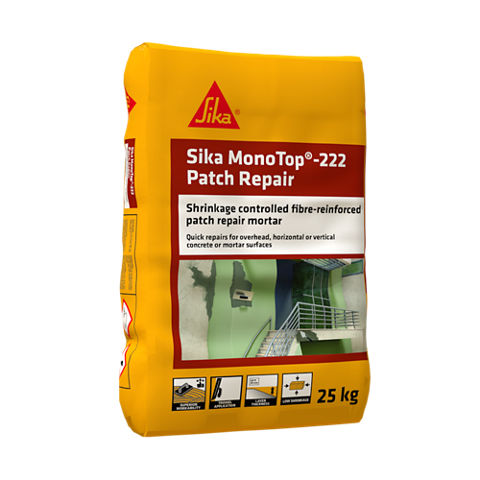

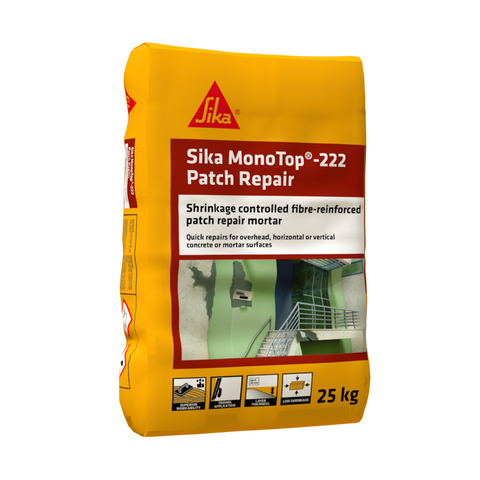

Sika MonoTop®-222 Patch Repair

General purpose shrinkage compensated patch repair mortar

Sika MonoTop®-222 Patch Repair is a cementitious shrinkage compensated mortar designed for all general purpose patch repairs. It requires only on site addition of
water to produce a high strength, shrinkage compensated mortar that is non-corrosive, non-oxidising and free of chlorides and nitrates.

  • Non-bleeding and non-segregation
  • Shrinkage-compensating
  • High early compressive and flexural strength
  • Non-corrosive and non-toxic
  • Chlorides and iron free
  • Pre-mixed to eliminate site variations and errors
Find a store
Product Data Sheet Show all documents

Usage

  • Patching of joints between precast and structural components
  • Repairs concrete structures and pre-cast components, e.g. damaged corners
  • Patch repairs to vertical, soffit and flooring concrete surfaces
  • Filling concrete cavities in electrical, piping and air-conditioning works
  • Securing foundation and anchor bolts, pipe clips, sanitary wares, etc.
  • Repair concrete conduits, drains, etc.
  • Surface irregularities repairs including exposed aggregates, joints between new and old concrete, protruding steel, tie-rod holes in formwork concrete, etc.


Advantages

  • Non-bleeding and non-segregation
  • Shrinkage-compensating
  • High early compressive and flexural strength
  • Non-corrosive and non-toxic
  • Chlorides and iron free
  • Pre-mixed to eliminate site variations and errors

Packaging

25 kg bag

Colour

Grey powder

Product Details

Product Information

Shelf Life

6 months from date of production

Storage Conditions

Store properly in original, unopened and undamaged sealed packaging in dry conditions. Keep away from water, rain and direct sunlight.
Technical Information

Compressive Strength

> 40 N/mm²

(ASTM C109:2016a)

Application

Application Information

Mixing Ratio

3.6–4.5 L of water per 25 kg bag

Fresh Mortar Density

2100 kg/m²

Pot Life

~30 minutes at +23 °C

Initial Set Time

> 1 hr

(BS EN 196:3:2005 + A1:2008)

Final Set Time

< 4 hrs

(BS EN 196:3:2005 + A1:2008)
Consumption

Yield

~0.014m³ / bag
Application steps

MIXING

For optimum result, mechanical mixer should be used. The recommended amount of water (3.6–4.5 L) should be measured and poured into the mixer. Slowly add Sika MonoTop®-222 Patch Repair and mix continuously for 4 to 5 minutes.

APPLICATION

Use a steel trowel to apply the mixed material onto the repair area. If the area that needs to be rectified is congested and cannot be reached with a trowel, use hands (wearing gloves) to push the pasty grout against the substrate and then trowel to a smooth finish. For application of joints between adjacent precast components, ensure that the material covers the joint spaces thoroughly.

For horizontal joints, the subsequent precast component should be laid onto the grout within the pot life after mixing, depending on ambient temperature and conditions.

CURING TREATMENT

Immediately after finishing, exposed area should be thoroughly cured with wet hessian or curing compound, e.g. Sika® Antisol®

CLEANING OF TOOLS

Clean all tools and application equipment with water immediately after use. Hardened material can only be mechanically removed.
